If you’ve ever looked at a red, black or white wire and asked yourself, “Wait… is the black wire positive or negative?” You’re not alone and you’re smart to ask.
Wiring can be confusing, especially when colors mean different things in different situations. Sometimes black means “hot” or “live,” and sometimes it means “negative.” That’s a big difference, and knowing it can keep you safe and save your appliances from getting fried.
This guide explains wire polarity, the meaning behind wire colors (like black, red, and white), and simple ways to identify each wire—with or without using tools. Whether you’re wiring a light switch, connecting jumper cables, or just replacing an old lamp cord, you’ll feel more confident after reading this.
Why Wire Color Matters
Wires may all look the same on the outside, but what they do can be very different. Each wire plays a role in the electrical system. Whether it’s delivering power, completing a circuit, or keeping things grounded and safe.
That’s why color coding exists: it helps you understand what you’re dealing with at a glance. But here’s the tricky part:
If you mix up a hot wire with a neutral or positive with a negative, it can cause serious damage or even injury. So, knowing what those colors mean, especially black. It is more than just a good habit. It’s a must.

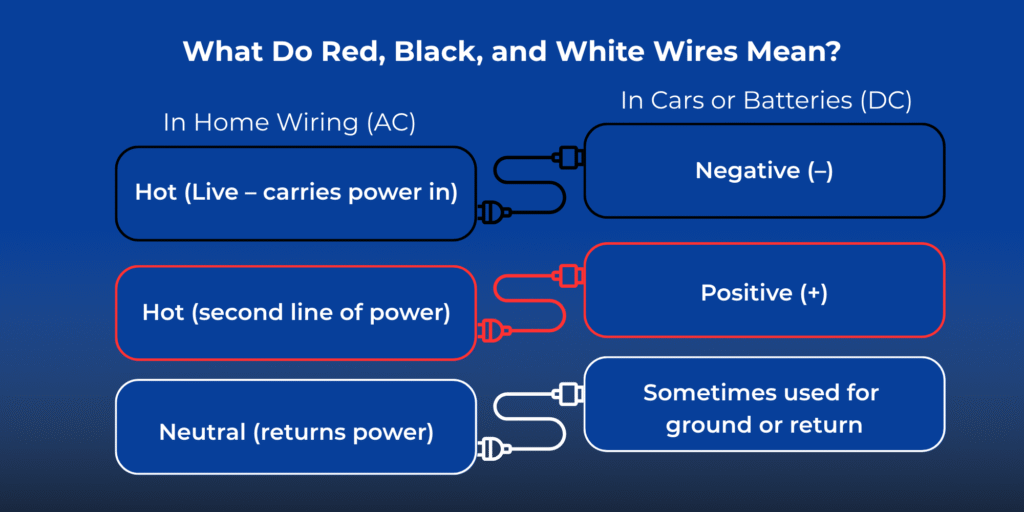

What Do Red, Black and White Wires Mean?
Let’s break down what the most common wire colors usually mean, in both AC and DC setups.
|
Color |
In Home Wiring (AC) |
In Cars or Batteries (DC) |
|
Black |
Hot (Live – carries power in) |
Negative (–) |
|
Red |
Hot (second line of power) |
Positive (+) |
|
White |
Neutral (returns power) |
Sometimes used for ground or return |
Quick Reminder: Always make sure you’re working with the right kind of circuit (AC or DC) before assuming anything about wire colors.
So… Is the Black Wire Positive or Negative?
The answer depends entirely on the type of electrical system.
In AC home wiring, the black wire is “hot”, which means it carries electricity from the power source to your devices (like outlets, lights, or appliances). It doesn’t carry a “positive” label, but it delivers power like one.
In DC circuits, like in vehicles or battery-powered devices, the black wire is typically negative (–) and the red wire is positive (+).
This is one of the most common mix-ups people make. So just remember:
- Black = Hot (AC)
- Black = Negative (DC)
Still confused? Think of it like this:
If you’re in your home and you see a black wire, treat it as a live wire.
If you’re hooking up a car battery or solar panel and see black, assume it’s negative. Unless labeled otherwise.
Positive and Negative Wire Color Guide
Here’s a handy chart you can screenshot or print out for reference:
|
System |
Positive (+) |
Negative (-) |
Neutral/Ground |
|
AC (Home Wiring) |
Black or Red |
— |
White (Neutral), Green/Bare (Ground) |
|
DC (Battery/Car) |
Red |
Black |
— |
|
Car Audio |
Red |
Black or Brown |
Bare/Chassis Ground |
|
Speakers |
Red or Striped |
Black or Plain |
— |
Keep in mind: not all wires are color-coded correctly, especially in older homes or DIY jobs. Always test first.
Wire Pairings Explained
Here’s how to understand the meaning when you see wires paired together.
Red & Black
In DC systems (like jumper cables or solar connections):
- Red is positive (+), black is negative (–).
In AC systems (like 240V appliances):
- Both can carry power (dual hot), so neither is neutral.
Black & White
Very common in home lighting and outlets:
- Black = hot
- White = neutral (returns electricity to the panel
White & Red
- Red = hot
- White = neutral
Electricians often use this in older homes or for special switches.
Two Black Wires
This happens in older appliances, light fixtures, or power cords. One is hot, one is neutral, but which one?
You’ll need a multimeter or continuity tester to find out (more on that next).
How to Identify Wire Polarity
Now let’s talk about how to tell which wire is positive or negative, or hot vs. neutral.
Using a Multimeter (Best Method)
A digital multimeter is a simple tool you can buy for around $20 at a hardware store. It tells you if a wire is carrying power and how much.
For DC Circuits:
- Set the multimeter to DC Voltage (V–).
- Touch the red probe to one wire and the black probe to the other.
- If you get a positive number, the red wire is touching positive.
- If you get a negative number, the red wire is touching negative (and vice versa).
For AC Circuits:
- Set it to AC Voltage (V\~).
- Place one probe on the black wire and the other on the white or ground wire.
- A reading around 120V or 240V means the black wire is hot.
Without Tools (Visual Checks)
If you don’t have a tester, here are a few tips to help:
Ribbed or smooth insulation
On lamp cords, the smooth side is usually hot, and the ribbed side is neutral.
Markings or stripes
In DC setups, a wire with a stripe, dash, or text is usually positive.

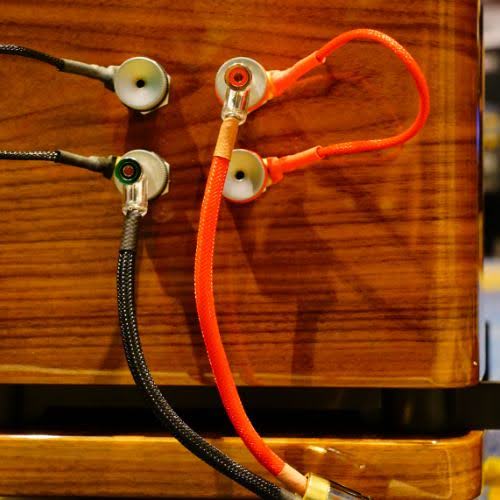

Speaker wires
Red or striped = positive. Plain black = negative
Caution: These markings aren’t always used or followed. When in doubt, get a tester or get some help.
Real-Life Examples & Safety Tips
Swapping a light switch?
That black wire you’re disconnecting is probably hot. Flip the breaker off first, and test it before touching!
Replacing a car stereo?
Don’t just match colors. Car manufacturers often use custom color codes. Always check a diagram.
Installing a new outlet?
Connect the bare/green wire to ground, the white wire to the silver screw, and the black wire to the brass screw.
Can’t find color markings?
Use a continuity tester to see which wire connects to which terminal. It’ll beep or light up when there’s a path.
Conclusion: Always Double-Check
When you see a black wire, ask yourself:
- Are you working with AC or DC?
- Did someone wire this system correctly, or did they alter it later?
- Do you have a multimeter or continuity tester nearby?
If you’re even a little unsure, stop and test it. It only takes a second, and it could prevent a disaster.
And if things seem messy, don’t be afraid to reach out to a professional electrician. There’s no shame in playing it safe with electricity.
FAQs
1. Is black positive or negative?
This depends on the type of electrical system.
- In AC (alternating current) wiring, like in your home. The black wire is hot, meaning it carries live power from the panel to your outlet, light, or switch. It’s not “positive” in the battery sense, but it does act like the power-supplying wire.
In DC (direct current) systems, like in cars, batteries, and electronics. The black wire is negative (–). It connects to the negative terminal or ground.
2. Is red positive or negative?
In most cases, red is positive, especially in DC systems like car batteries, jumper cables, or solar panels. You’ll almost always attach the red wire or clamp to the positive (+) terminal.
In AC wiring, red can also be a “hot” wire used in special circuits, like for split-phase 240V appliances or multi-way switches. In that case, it works alongside black, and both are hot, not neutral or negative.
3. Is the white wire positive or negative?
In home wiring (AC), the white wire is neutral, not positive or negative. It completes the circuit by carrying current back to the electrical panel. Think of it like the return path.
In DC systems, white wires aren’t as common, but if you see one, it may act as a ground or return wire, depending on the manufacturer or setup.
4. How do I use jumper cables safely?
This is a must-know for every driver, and yes, wire polarity matters here.
Here’s the safest order to follow when jumping a car battery:
- Connect the red clamp to the positive (+) terminal of the dead battery.
- Connect the red clamp to the positive (+) terminal of the good battery.
- Connect the black clamp to the negative (–) terminal of the good battery.
Connect the final black clamp to a clean, unpainted metal part on the engine block or frame of the dead car (not to its battery!).
5. What happens if I mix up red and black wires?
If by mistake you reverse polarity, especially in DC systems. Bad things can happen fast.
- In DC circuits (like car batteries, solar panels, or electronics), connecting red to negative or black to positive can short-circuit the device. You might blow a fuse, fry components, or damage sensitive electronics permanently.
- In AC circuits, mixing the hot and neutral wires can lead to shocks, fire hazards, or tripped breakers. If the black wire (hot) ends up where the neutral should be, the metal parts of your appliances or light fixtures could carry current and become dangerous to touch.
